Mosquito Magnet® Commercial Pro

Pro Power Pack Breakdown
Quick Clear Valve & Regulator Quick Connect

Quick Clear Valve/Regulator Quick Connect

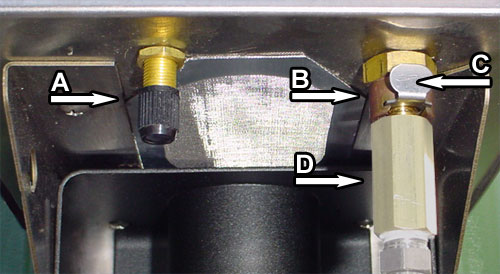

This is the view from the underside of the trap.
  1. Quick Clear Valve - This is where you connect the quick clear valve adapter and use a Quick Clear cartridge to clear any impurities in the trap.
  2. Quick Release Connector - This is where you connect the regulator
  3. Quick Release Slide Tab - Pressing this will allow the regulator to be easily removed. (NOTE:This may be reversed and you can press it from behind the valve.)
  4. Regulator - This is the gas line that is attached to the propane tank.
